High Resolution X-Ray Tomography Machine Unicomp UNCT2600 For Engine Blades Non-Destructive Testing
Détails du produit
Machine de tomographie par rayons X des lames du moteur
,Appareil de tomographie par rayons X à test non destructif
,Machine de tomographie par rayons X haute résolution

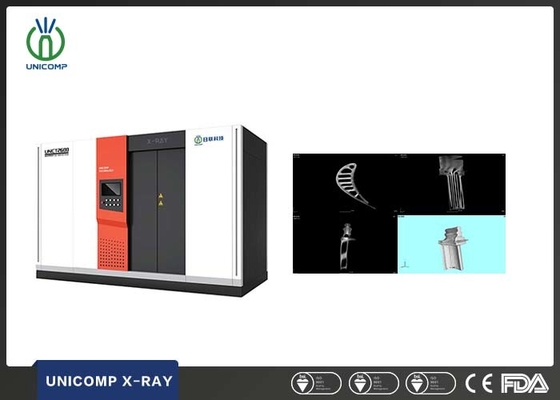

High resolution X-ray tomography machine Unicomp UNCT2600 for engine blades non-destructive testing
Product Description:
The UNCT2600 is one compact industrial CT inspection system that offers high precision and can be utilized across various industries to meet their specific inspection requirements. It is primarily employed for small metal castings, non-ferrous metals, lithium battery cells, chips, electronic components, rock samples, cores, soils, fossils, composite materials, biological samples and other detection purposes.
Features:
- Functions: Incorporates dual imaging detection capabilities of both DR and CT, enabling 3D scanning, comprehensive data reconstruction, and detailed analysis.
- Safety: Ensures a superior level of protection, with radiation exposure significantly below national safety standards, complemented by multiple robust safety measures.
- Operation: Features a user-centric control system design that simplifies operation, allowing operators to quickly grasp its usage after minimal training.
- Precision: Boasts a high-precision mechanical transmission system coupled with state-of-the-art image processing and analysis software, delivering exceptional detection accuracy.
Technical Parameters:
| Product Name: | High resolution X-ray tomography machine Unicomp UNCT2600 for engine blades non-destructive testing |
| Dimensions: | 3550mm*1750mm*2400mm(L*W*H) |
| Machine Weight: | 7000kg |
| Pixel Matrix: | 3072*3072 |
| Pixel Size: | 139μm |
| Voltage: | 225KV |
| X-ray tube type | Split tube |
| Training: | Yes, we warmly welcome you to visit our factory, we will arrange the free training for you. |
| Services: | Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others. |
Applications:
The Industrial X Ray Machine product can be used across a variety of industries and applications. Here are some of the occasions and scenarios where the product can be used:
- Defect Detection: Industrial CT precisely identifies internal flaws like cracks, voids, and inclusions without damaging the sample, ensuring product quality.
- Wall Thickness Analysis: Accurately measures wall thickness variations and gaps, enabling fine-tuning of complex components.
- CAD Comparison: Validates CAD designs by comparing them with actual part geometries, uncovering discrepancies and facilitating design optimization.
- Metrology/Coordinate Measuring: Provides high-accuracy dimensional measurements, complementing traditional coordinate measuring machines (CMMs) for comprehensive quality control.
- Fiber Composite Analysis: Uncovers defects like delamination, porosity, and resin cracks in composites, enhancing material reliability and durability.
- Transfer Phenomena: Enables visualization of fluid flow, heat transfer, and other phenomena within materials and structures, aiding in design optimization.
- Structural Mechanics Simulation: Coupled with simulation tools, predicts stress, deformation, and failure modes, informing stronger, lighter designs.
- Reverse Engineering: Converts existing parts into precise CAD models, facilitating replication, redesign, and reverse-engineering processes.
Support and Services:
Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.
FAQ:
Q: How about the package? Is it safe during the delivery?
A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
Q: Do you provide the Warranty? How about the after-sales service?
A: 1-year warranty free for spare parts, Whole life technical support.
We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
Q: If we come to your factory if you will provide free training?
A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

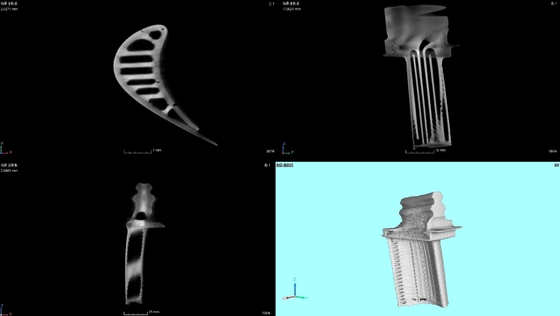

Inspection Images:
-
